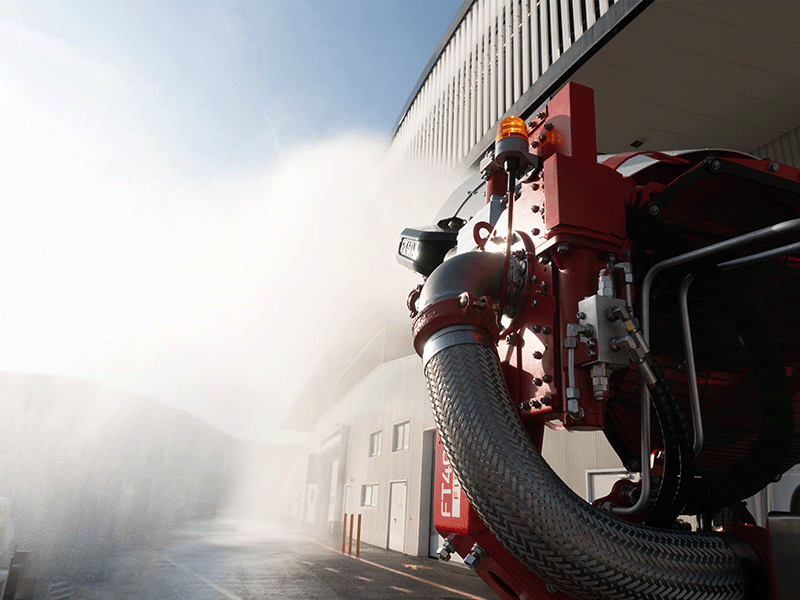

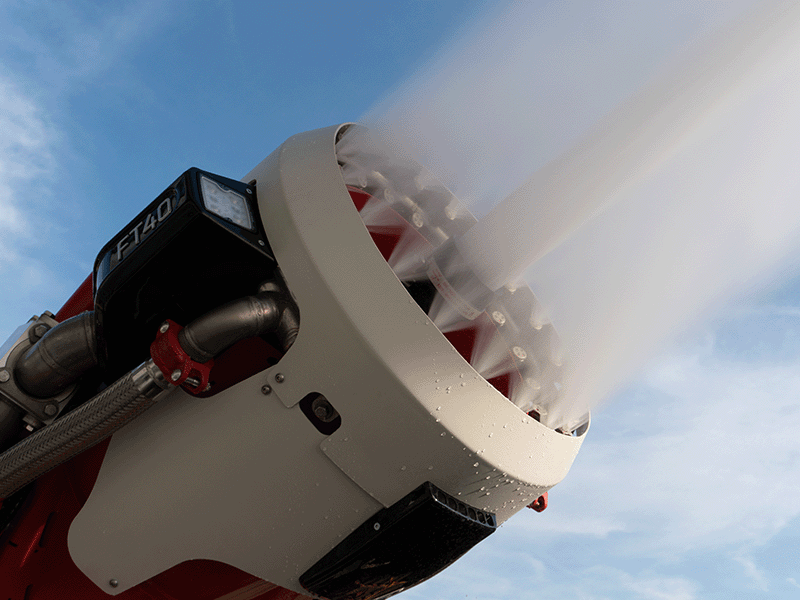

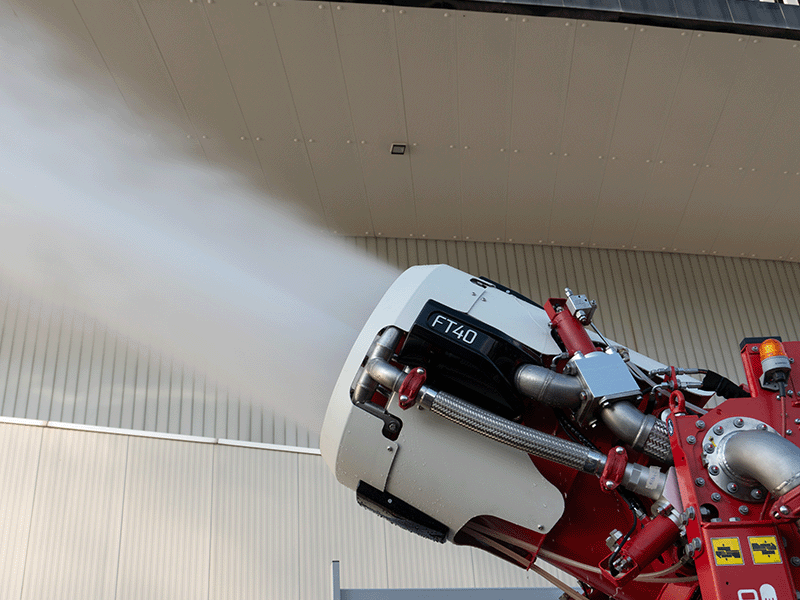

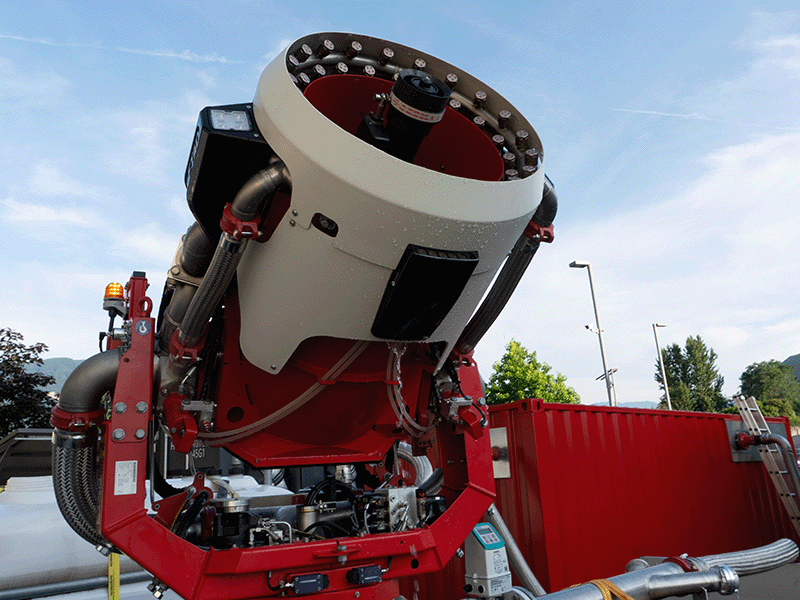

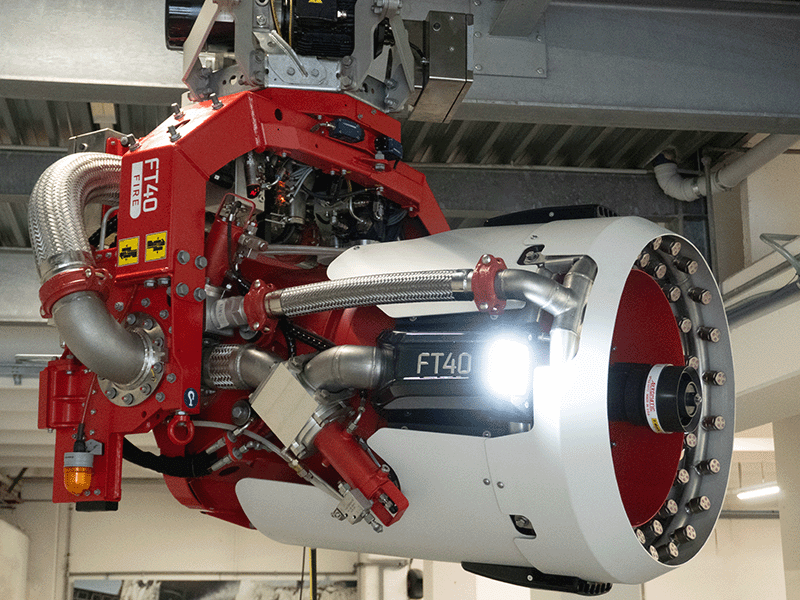

FT40
Water mist turbine for stationary fire protection
With high performance and reliability, the FT40 water mist turbine is the ideal solution for precise and efficient fire fighting in stationary installations. With the FT40, you are optimally equipped to fight fires at an early stage and minimise the risk of damage.

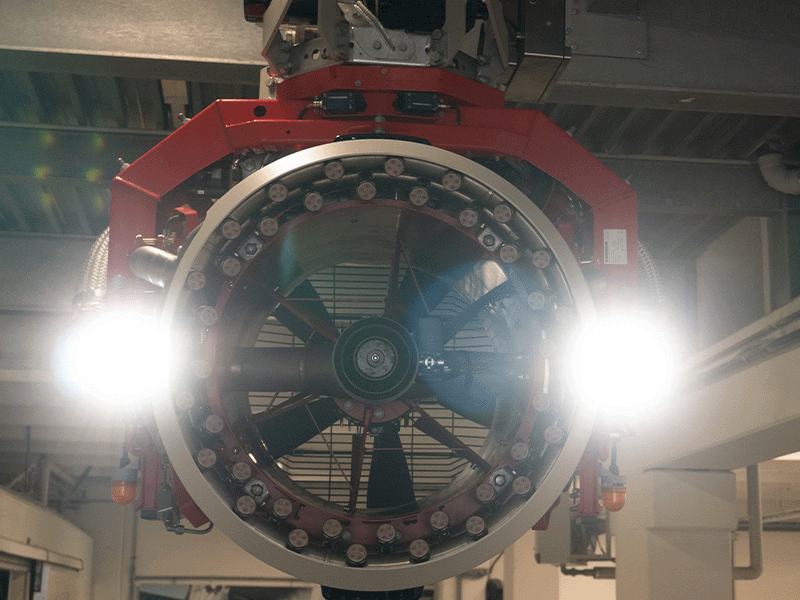

The turbine offers a range of mounting and positioning options, including ceiling, truss, roof or wall mounting. This flexibility allows the turbine to be optimally positioned depending on the situation and local conditions. With increased reach and extended downward range, areas can be covered even more effectively: the turbine can be positioned in a space-saving way without creating downward shadowing.
- Product information
- Technical data
- Documentation & videos
- General information
- Supplier information
- Send saved products to yourself, or as a quote request to Hansa
Advantages of the programme
- Fast response and precise accuracy
- Flexibility in installation and placement
- Reliability and precision in extinguishing even after prolonged use
- Efficient resource utilisation through the use of water mist
- Compatible with different detection systems for a customised solution
- Compatible with environmentally friendly (fluorine-free) foam concentrates
Technical specifications
| Type | Data |
|---|---|
| Nominal voltage at 50 Hz | 400 V |
| Nominal voltage at 60 Hz | 480 V |
| Flow rate at 16 bar | > 6,000 l/min |
| Flow rate at 10 bar | up to 4,600 l/min |
| Rotation speed (variable) | 0.5 to 2 rpm |
| Nominal power of largest motor | max. 12.5 kW |
| Inclined turbine | -92° to +32° |
| Turbine weight | around 700 kg |
| Swing | 360° |
| Propeller speed | 2,910 rpm |
| Additional nozzle head, rim and monitor sizes | |
| Control via MOD bus, CAN bus or up to 20 digital inputs | |
| Sensors for position and pressure monitoring |
Documents for download

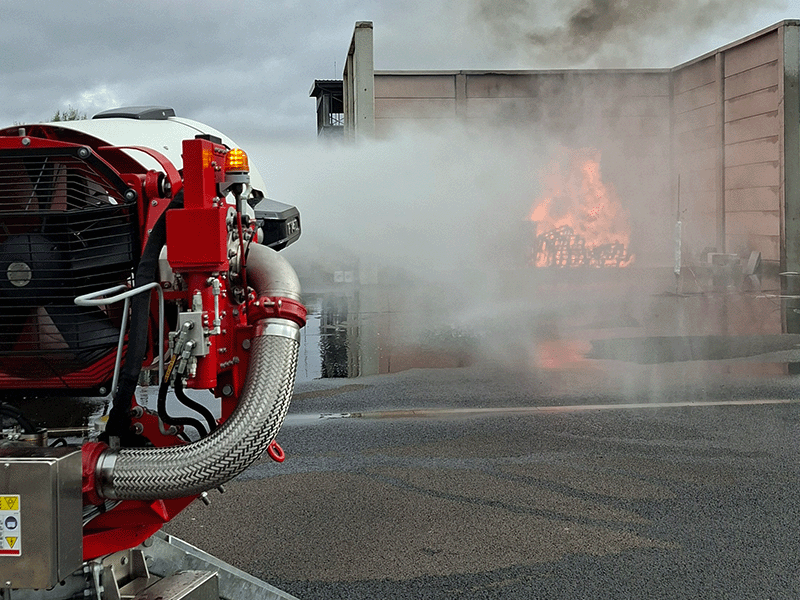

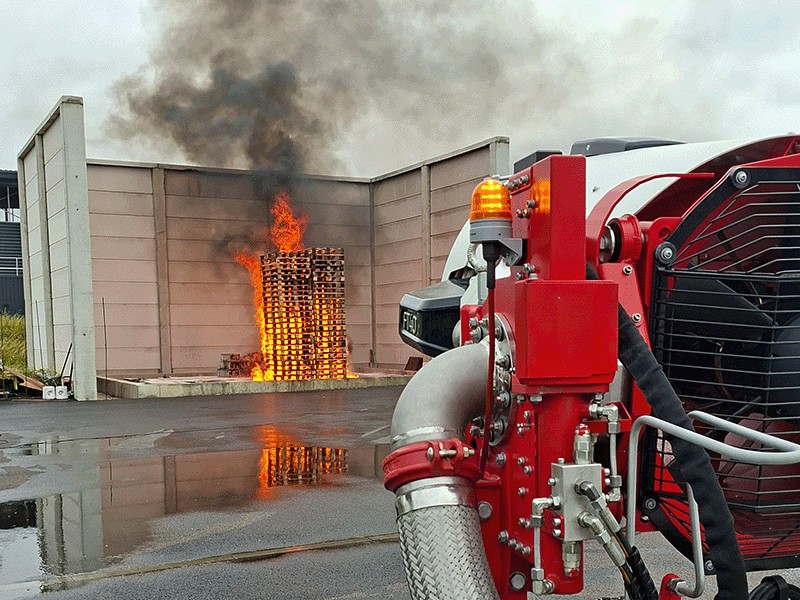

How the FT40 significantly increases fire protection

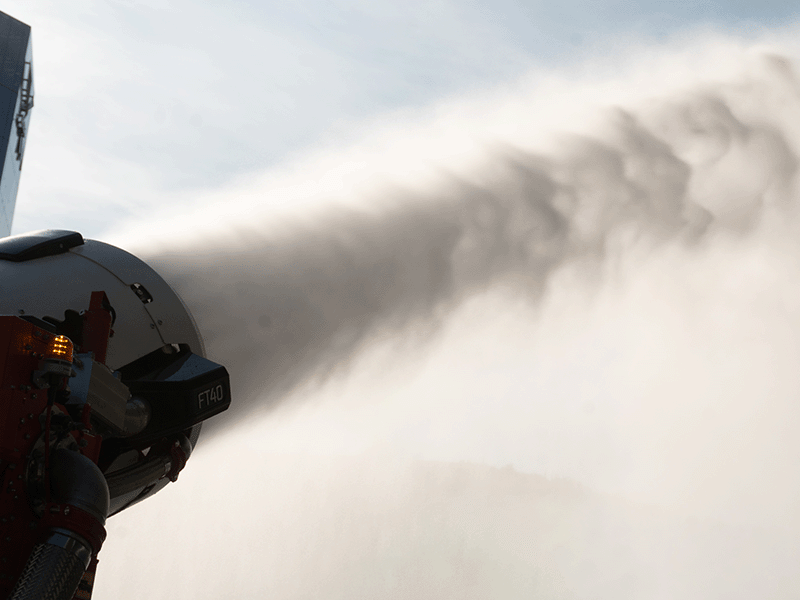

The key component of the FT40 is its innovative water mist concept. Unlike conventional extinguishing methods, water mist achieves a significantly higher cooling effect, leading to faster and more efficient fire suppression. The fine water droplets penetrate deep into the fire source and absorb energy, lowering the ambient temperature faster.
The FT40 therefore goes far beyond pure extinguishing efficiency. With options such as batteries for back-up power and an additional nozzle ring for even higher water mist volume, it offers a complete solution to meet each customer's individual requirements. Thanks to high-quality components and robust design, the FT40 is not only powerful, but also reliable and durable.
The turbine is compatible with a wide range of detection systems and offers both fully automatic and manual control. It can be adapted to the individual requirements of different applications and ensures reliable firefighting.
Possible variants for system installation of FT40
Assembly and positioning:
- Slatted turbine for roof installation (e.g. beam/hall roof)
- Sleigh turbine on wall bracket
- Sleigh turbine on substructure
- Sledging turbine on tower
Our main supplier is EmiControls, leading manufacturer of dust control products and solutions. With a strong focus on R&D, EmiControls has developed innovative technology and has exstensive knowledge and experience on how to create droplets optimised for effective dust control.
EmiControls develops all its products according to the following criteria:
- Full control of water flow, throw length and drop size
- Flexible configuration
- Low energy consumption
- Long life span of machinery and components
- Low maintenance costs
- User safety
Every customer has a unique dust problem. The core of EmiControls' business is to develop a customised solution for the customer to achieve the best results, and to offer a strong global after-sales service.
EmiControls was founded in 2011 and has its roots in TechnoAlpin, the world's leading manufacturer of snow guns. Since 2017, Hansa Engineering Group represents EmiControls in Sweden, Norway, Denmark and Finland.
